Willkommen auf der Dragonfly-Plattform!
Hier gibt es keine Modelle, Ihr Motorrad veraltet nicht !
Alle Upgrades und Innovationen können an Ihren Dragonfly mit einem Update nachgerüstet werden, unabhängig davon, in welchem Jahr Sie es kaufen!
Noch nie war es bei einem Trial-Motorrad so einfach, es zu konfigurieren und an Ihre Bedürfnisse anzupassen.
|
|

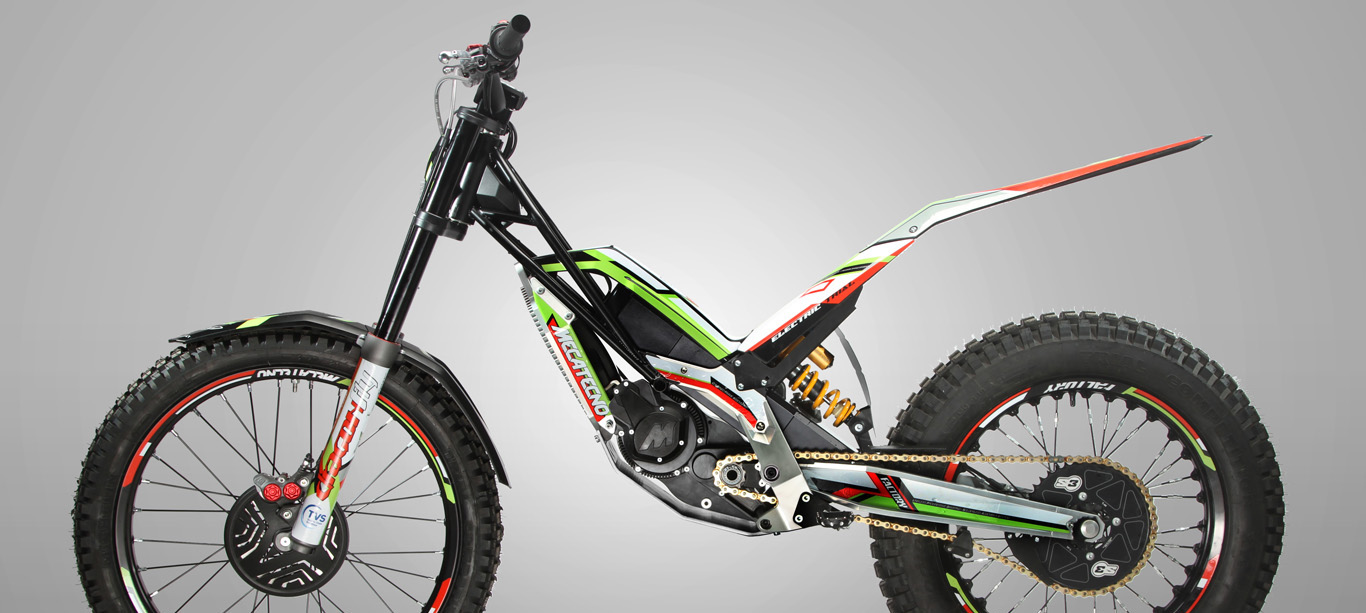

| DRAGONFLY - LAUNCH EDITION - TECHNICAL SPECIFICATIONS SHEET |
| POWER TRAIN | IMA (independent Motor Assembly) |
| Motor Type | Brushless Air Cooled |
| Nominal / Max Voltage | 48V / 58,8V |
| Nominal / Peak power | 6 Kw / 11 Kw |
| Riding Maps | 3 Maps (initiation, classic trial , modern trial) |
| Clutch | Hydraulic multidisc system |
| BATTERY | CMBP (Centered Mass Battery Positioning) |
| Maximum Capacity | 1.875Wh |
| Recharge Life Cycles | 1.000 cycles |
| Recharge Time | 2,5 Hours |
| Battery Housing | Aluminium 6060-T6, 7075-T6 |
| FRAME | CFA (Combined Frame Assembly) |
| Tubular Frame | ø18mm 25CrMo4 |
| Central Cage | Aluminium 7075-T6 Billet CNC |
| Skid Plate | 5mm Aluminium 7075-T6 |
| Swing Arm | Aluminium 7075-T6 Billet CNC |
| Handlebar | S3 WorldTeam Replica |
| Footpegs | S3 HardRock |
| SUSPENSION | LPD-SAS (Linkless Progressive Damping - Solderless Assembly System) |
| Front Fork | M4 ø39mm Aluminium Spring Fork |
| Adjustment | Spring Pre-load, Extension |
| Wheel Travel | 170 mm |
| Rear Shock | Öhlins TTX 190*51 |
| Adjustment | Spring Pre-load, Extension, High+Low-speed compression |
| Wheel Travel | 174 mm |
| WHEEL + BRAKE | |
| Wheel Rim Type | Morad Aluminium Rim Type |
| Front Tire | Michelin X11 2,5*21" |
| Rear Tire | Michelin X11 4*18" |
| Front Brake | 185mm Galfer Wave disc, 4 Piston Braktec "Top"Caliper |
| Rear Brake | 150mm Galfer FIM disc, 2 Piston Braktec "Top" Caliper |
| GENERAL DIMENSIONS | |
| Total Weight | 60 Kg |
| Weight distribution | 30 Kg Front / 30 Kg Rear |
| Ground Mass | 16,9 Kg |
| Suspended Mass | 43,1 Kg |
| Wheel Base | 1.320 mm |
| Seat Height | 650 mm |
| Ground Clearance | 320 mm |
| MECATECNO reserves the right to make changes in technical and product specifications without prior notice. | |
